BS110
Manual stencil printer for small volume production with print area 610 x 610 mm.
Technical data:
- Stencil frame size: 300 x 300mm; (740 x 740 mm optional)
- Work table size: 610 x 610 mm
- X- and Y-Axes range: +/- 13 mm
- Theta rotation: +/- 3,5°
- Underside Clearance: 25 mm
- Z-axis range: 0 - 35 mm
- Registration Repeatability: +/- 0.02 mm
- Overall dimensions: 900x300x1050 mm
- Machine weight: 90 kg
Similar products
YRP10e
Automatic, inline high-performance stencil printer. It operates with the YRP10’s speed (6 second cycle) and 3S (swing single squeegee) print head technology while offering ±30 µm printing accuracy at 6σ, Cpk ≥ 2.0 and maintains a compact footprint.
Printers
YAMAHA

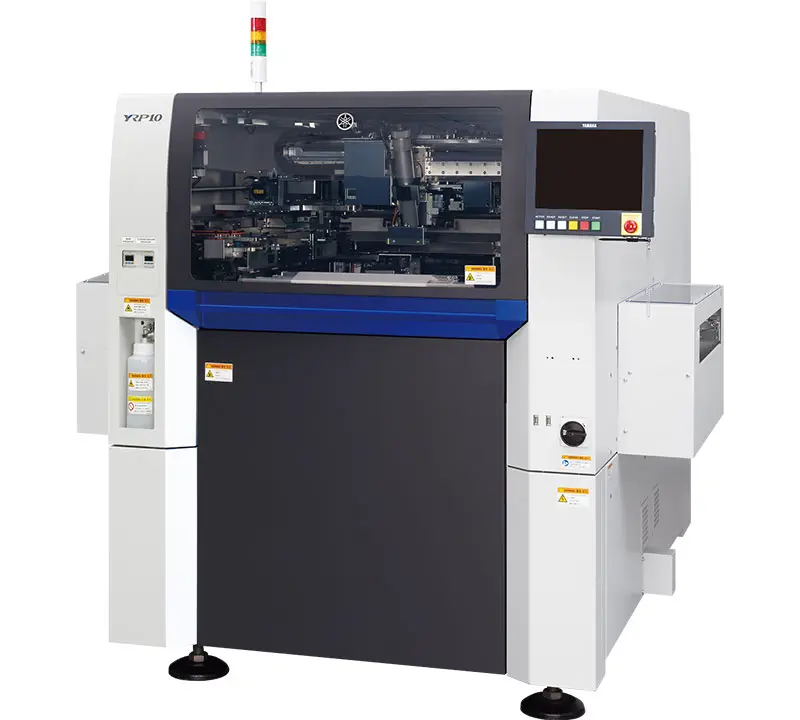

YRP10
